19.6. Inspecting Component Details

Press the figs/web/ide-eclipse-clm-icon-details.png Open Component Details button in order to access the details about policy violations, license analysis and security issues for a specific component selected in the list. Figure 19.9, “Example Component Details Display” displays an example details view.

figs/web/ide-eclipse-details.png

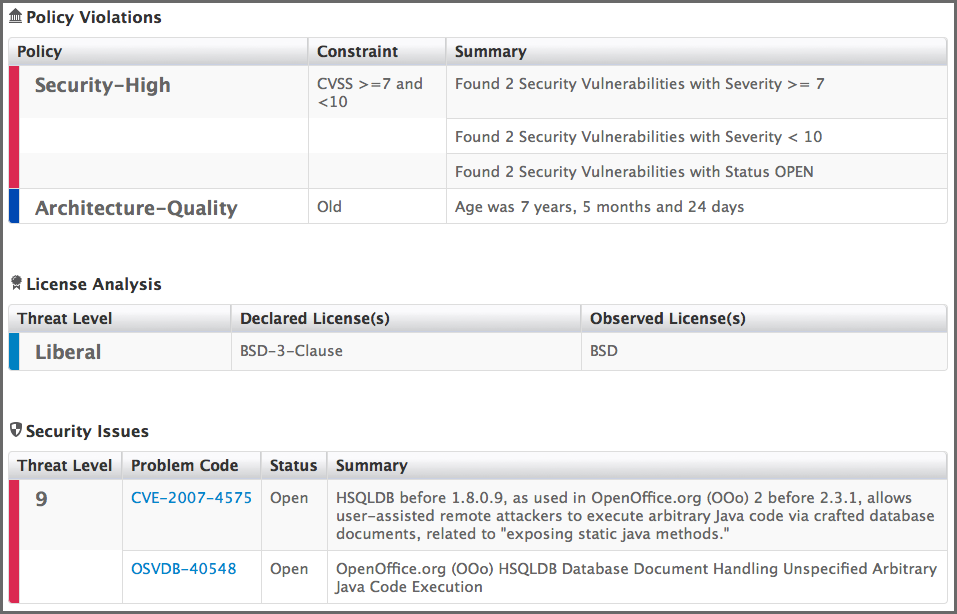

Figure 19.9. Example Component Details Display


The Policy Violations section in the top contains a list of all the policies that have been violated by the component.

The License Analysis section contains the Threat Levels posed by the licenses declared for each component, as well as those that have been observed in the source code.

The Security Issues section below contains the list of issues found. They are sorted from higher to lower risk, with each issue detailed by a Threat Level ranging from 0 to 10, or potentially with the value Unscored and a descriptive text in the Summary column. In addition, links to the security vulnerability database entry are added as links in the Problem Code column.
