Sonatype CLM - CI User Guide

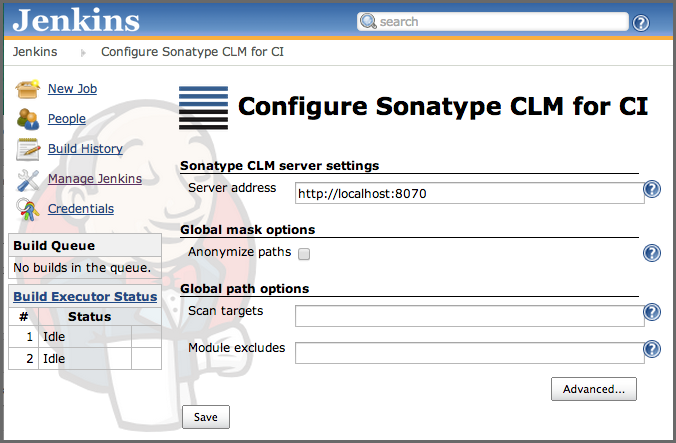

After a successful installation of the Sonatype CLM for CI plugin, the global Jenkins/Hudson configuration menu, displayed in Figure 2.1, “Jenkins Global Configuration Menu” includes a separate item for Sonatype CLM with the title Configure Sonatype CLM for CI . Click the link to get to the global configuration displayed in Figure 2.2, “Global Configuration of Sonatype CLM for CI in Jenkins”.
The global configuration for Sonatype CLM for CI is used as the default configuration for all invocations of the plugin. Specific parameters supplied for individual jobs are appended to the global configuration. You can configure the following settings:
- Sonatype CLM server settings
-
- Server address
-
The address for the Sonatype CLM server as it can be
reached from the Jenkins/Hudson server. The address should be the same
one a user is using to access the Sonatype CLM server interface. A
suitable URL for a default install on your local computer would be
http://localhost:8070. If your Sonatype CLM server is behind a proxy server for serving HTTPS or other reasons, you have to use the public URL as it is reachable from the continuous integration server. Only the master Jenkins/Hudson server connects to the CLM server and you therefore only need ensure connectivity in terms of open firewall ports and proxy server settings between the master CI server and the CLM server. This configuration parameter is the only required setting.
- Global mask options
-
- Anonymize paths
- Enabling this feature will anonymize all paths before data is sent to the Sonatype CLM server. Ultimately, this prevents the CLM report from reporting the locations/occurrences of components. Our recommendation is to leave this disabled, unless you are worried about Sonatype knowing about the file names of your components.
- Global path options
-
- Scan targets
-
The scan targets setting allows you to control which files should be examined. The configuration uses an Apache Ant styled pattern, is relative to each project’s workspace root directory, and has a useful default setting that includes all
jar,war,ear,zipandtar.gzfiles. The default value is therefore**/*.jar, **/*.war, **/*.ear, **/*.zip, **/*.tar.gz
Note
This default only applies if and only if neither global nor job config specify scan targets.
- Module excludes
-
As part of CLM, Sonatype has included a CLM Maven Plugin. Use of the CLM Maven plugin in the build process will result in the creation of module information files. If desired, you can exclude some of the modules from being scanned. The default location where the modules are stored is
${project.build.directory}/sonatype-clm/module.xml.To exclude a module, use a comma-separated list of Apache Ant styled patterns relative to the workspace root that denote the module information files (
**/sonatype-clm/module.xml) to be ignored, e.g.**/my-module/target/**, **/another-module/target/**
If unspecified all modules will contribute dependency information (if any) to the scan.
Tip
While the CLM Maven Plugin produces these files for all modules in a Maven build, the excludes can be used to ignore certain modules from analysis. For more on the CLM Maven Plugin, see Section 4.1, “CLM Maven Plugin Introduction”.
- Advanced options
- A number of additional parameters can be supplied to the plugin using this input field. Typically these parameters will be determined by Sonatype support.
