Developing with Eclipse and Maven

Chapter 3. Creating and Importing Projects

Chapter 3. Creating and Importing Projects

3.1. Creating a Maven Project

When using Maven, project creation takes place through the use of a Maven archetype. In Eclipse, project creation takes place via the new project wizard. The new project wizard inside of Eclipse offers a plethora of templates for creating new projects. The m2eclipse plugin improves upon this wizard to provide the following additional capabilities:

  • Checking out a Maven project from a SCM repository

  • Creating a Maven project using a Maven archetype

  • Creating a Maven POM file

As shown in Figure 3.1, “Creating a New Project with m2eclipse Wizards”, all three of these options are important to developers using Maven. Let’s take a look at each one.

Creating a New Project with m2eclipse Wizards

Figure 3.1. Creating a New Project with m2eclipse Wizards

3.1.1. Checking Out a Maven Project from SCM

m2eclipse provides the ability to check out a project directly from a SCM repository. Simply enter the SCM information for a project and it will check it out for you to a location of your choice as shown in Figure 3.2, “Checkout a New Project from Subversion”:

Checkout a New Project from Subversion

Figure 3.2. Checkout a New Project from Subversion

There are additional options in this dialog for specifying a particular revision by browsing the revisions in a Subversion repository or by simply entering the revision number manually. These features reuse of some of the features in the Subclipse plugin to interact with the Subversion repository. The m2eclipse plugin supports the following SCM providers:

  • Bazaar

  • Clearcase

  • CVS

  • git

  • hg

  • Perforce

  • Starteam

  • Subversion

  • Synergy

  • Visual SourceSafe

3.1.2. Creating a Maven Project from a Maven Archetype

m2eclipse offers the ability to create a Maven project using a Maven Archetype. There are many Maven Archetypes provided in the list that comes with m2eclipse as shown in Figure 3.3, “Creating a New Project with a Maven Archetype”.

Creating a New Project with a Maven Archetype

Figure 3.3. Creating a New Project with a Maven Archetype

The list of archetypes in Figure 3.3, “Creating a New Project with a Maven Archetype” is a list generated by something called the Nexus Indexer. Nexus is a repository manager which is introduced in "Repository Management with Nexus", a free book available from Sonatype which can be read online here: The Nexus indexer is a file which contains an index of the entire Maven repository, and m2eclipse uses it to list all of the available archetypes in the entire Maven repository. When this chapter was last updated, m2eclipse had approximately ninety archetypes in this Archetype dialog. Highlights of this list include:

[1]And these were just the archetypes that were listed under the Nexus Indexer Catalog, if you switch Catalogs you'll see other archetypes. While your results may vary, the following additional archetypes were available in the Internal Catalog:

  • Atlassian Confluence Plugin Archetype under com.atlassian.maven.archetypes

  • Apache Struts Archetypes under org.apache.struts

  • Apache Shale Archetypes under org.apache.shale

A catalog is simply a reference to a repository index. You can manage the set of catalogs that the m2eclipse plugin knows about by clicking on the Configure... button next to the catalog drop down. If you have your own archetypes to add to this list, you can click on Add Archetype....

Once you choose an archetype, Maven will retrieve the appropriate artifact from the Maven repository and create a new Eclipse project with the selected archetype.

3.1.3. Creating a Maven Module

m2eclipse provides the ability to create a Maven module. Creating a Maven module is almost identical to creating a Maven project as it also creates a new Maven project using a Maven archetype. However, a Maven module is a subproject of another Maven project typically known as a parent project.

Creating a New Maven Module

Figure 3.4. Creating a New Maven Module

When creating a new Maven module you must select a parent project that already exists inside of Eclipse. Clicking the browse button displays a list of projects that already exist as shown in Figure 3.5, “Selecting a Parent Project for a New Maven Module”:

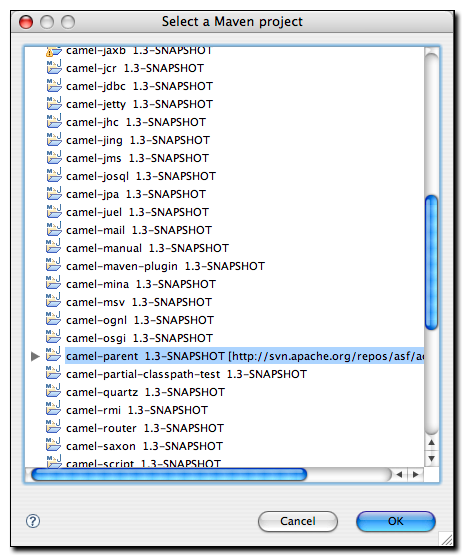

Selecting a Parent Project for a New Maven Module

Figure 3.5. Selecting a Parent Project for a New Maven Module

After selecting a parent project from the list, you are returned to the New Maven Module window and the Parent Project field is populated as shown in Figure 3.4, “Creating a New Maven Module”. Clicking Next will then display the standard list of archetypes from Section 3.1.2, “Creating a Maven Project from a Maven Archetype” so you can choose which one should be used to create the Maven module.

[1] Don't use the Groovy Maven Plugin in Codehaus' Mojo project. Jason Dillon has moved the Groovy Maven integration to the Groovy project in codehaus. For more information see
