Chapter 4. Quick Start Guide

This guide can help you get IQ Server up and running for the purpose of trying out its features before installing it in your development environment. It should take approximately 15 minutes to complete using sample policies and applications.

Part 1: Installing IQ Server

Create an installation directory in your desired location.
Download the latest version of IQ Server to the installation directory.
Extract the tar.gz or .zip file.

Part 2: Starting IQ Server

Using a command line interface, switch to the nexus-iq-server bundle directory in your installation directory e.g. nexus-iq-server-x.xx.x-xx-bundle.
Run one of the following commands to start IQ Server:

Linux or Mac: ./demo.sh

Windows: demo.bat
Open IQ Server in a browser using the default URL: http://localhost:8070
Log in using the default Administrator account:
```
Username: admin
Password: admin123
```
Install the required product license supplied to you by the Sonatype Support team.
1. Click Install License.
2. Navigate to the license file (.lic) and click Open.
3. Click I Accept to accept the End User License Agreement.


	IQ Server needs access to an external data service to perform evaluations, which may be blocked in your internal environment. For a workaround, see Running IQ Server Behind a HTTP Proxy Server in the IQ Server documentation.

Part 3: Configuring IQ Server

To see what IQ Server can do, you need three basic things: policies, an organization, and an application. IQ Server uses policies to identify potential issues in an application. In the steps below, you will import the Sonatype Sample Policy set which has multiple policies for triggering violations on security vulnerabilities, licensing issues, architecture issues, and more. You will also create an organization and an application, which will demonstrate the three levels of IQ Server’s system hierarchy: Root Organization, organization, and application. Policies and other configuration items are inherited from the Root Organization on down. This allows for easier policy management especially when you have multiple organizations and applications.

Import sample policies into the Root Organization:

In a separate browser tab or window, download the Sonatype Sample Policy set (.json file) from the IQ Server documentation.
In IQ Server, click the Organization & Policies icon on the IQ Server toolbar.
The Root Organization should be selected in the sidebar. Click the Actions menu and select Import Policies.
In the Import Policies dialog, click Choose File, select the .json file you downloaded, and click Open.
Click the Import button.

figs/web/clm-server-policy-import-dialog.png

Figure 4.1. Import Policy Dialog

Create an organization in IQ Server:

In the Organization & Policies area, with the Root Organization selected in the sidebar, click the New Organization button.
In the New Organization dialog, enter a name into the Organization Name text box.
Click the Create button.

figs/web/clm-server-view-organization.png

Figure 4.2. New Organization Dialog

Create an application in IQ Server:

With your newly created Organization selected in the sidebar, click the New Application button.
In the New Application dialog, enter an Application Name and Application ID.
Click the Create button.

figs/web/clm-server-view-application.png

Figure 4.3. New Application Dialog

Part 4: Evaluating Applications

After you install, start, and configure IQ Server, you are ready to evaluate applications. If you need a sample application, you can download WebGoat (webgoat-container-x.x.x-war-exec.jar) at https://github.com/WebGoat/WebGoat/releases.

To evaluate an application:

In the Organization & Policies area, select your application in the sidebar. The file that you evaluate will be associated with this application.
Go to the Actions menu, and click Evaluate Binary.
In the Evaluate a Binary dialog:
1. Click the Choose File or Browse button, select the file to evaluate, and click Open.
2. Click to select any stage to associate with the evaluation (e.g. Build).
3. Click No to prevent sending notifications of policy violations as defined in the policy’s configuration settings.
4. Click the Upload button to begin evaluating the selected application. An Evaluation Status message is displayed.
5. When the evaluation is complete, click the View Report button to open the Application Composition Report for the application.

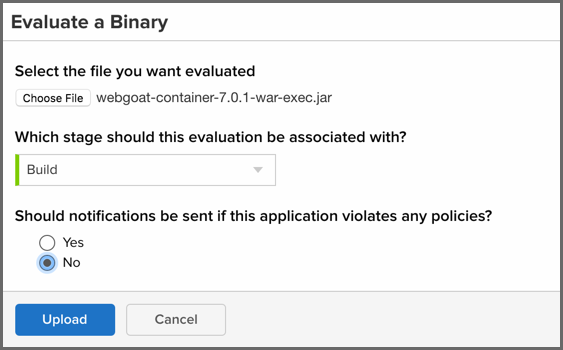

Figure 4.4. Evaluate a Binary Dialog

Part 5: Reviewing Results

The results of a binary evaluation are displayed in the Application Composition Report, which you can always access by clicking the Reporting icon on the IQ Server toolbar.

The report’s information is divided into four tabs:

Summary - An overview of identified components and their policy alerts, security issues, and license analysis.
Policy Violations - A list of violated policies and the components that triggered them sorted by threat level from from highest to lowest.
Security Issues - A list of security vulnerabilities and the components that triggered them sorted by threat level from highest to lowest.
License Analysis - A list of license issues and the components that triggered them sorted by license threat from highest to lowest.

For a more thorough explanation of the report, see the Application Composition Report chapter in the Nexus IQ Server Documentation.

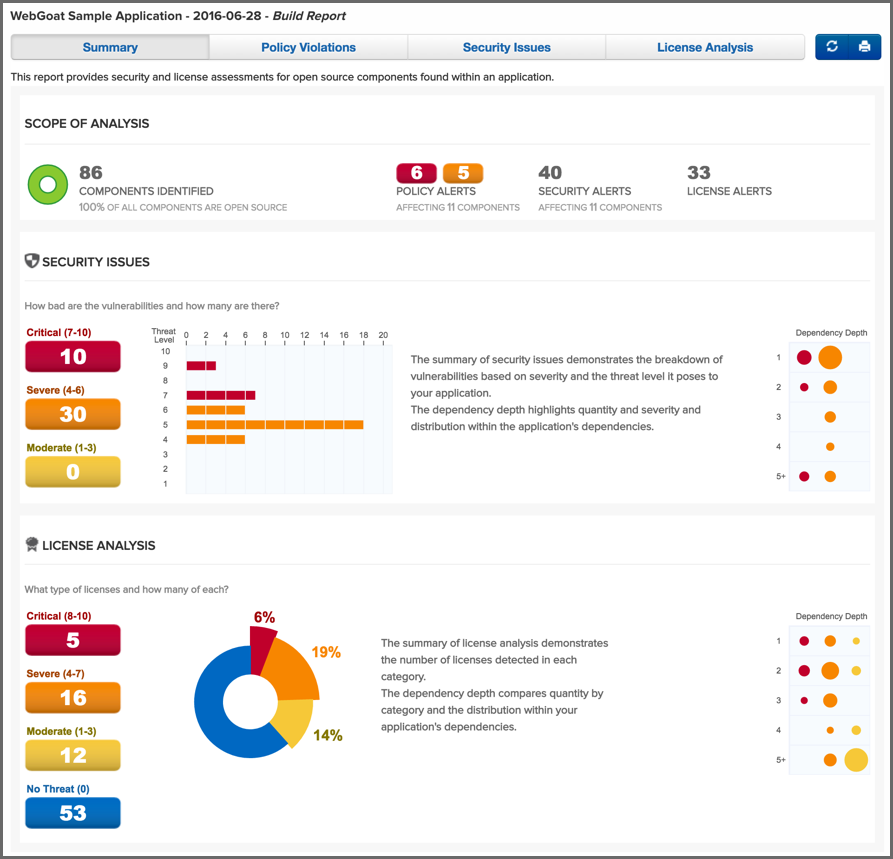

Figure 4.5. Application Composition Report

Part 6: Investigating & Remediating Violations

In the Application Composition Report, you can drill down to learn specific details about a violation. In every tab (except the Summary tab), you can click an individual component to open the Component Information Panel (CIP). The CIP displays many details, which are divided into different sections or tabs. To get you started using the CIP, take a look at these sections:

Component Info - In the graph, you can move the vertical bar to learn the differences between versions of a component.
Policy - You can click the Waive button to force IQ Server to ignore a policy violation.
Licenses - You can track your research about a particular license and even override one.
Vulnerabilities - You can click Info for a thorough explanation of a component’s vulnerability and a recommended action.
Claim Component - You can tell IQ Server to recognize a component even though it was previously identified as unknown.

This is just a small sample of the component information available in the CIP. For a complete discussion of the CIP, see Component Information Panel in the Nexus IQ Server Documentation.

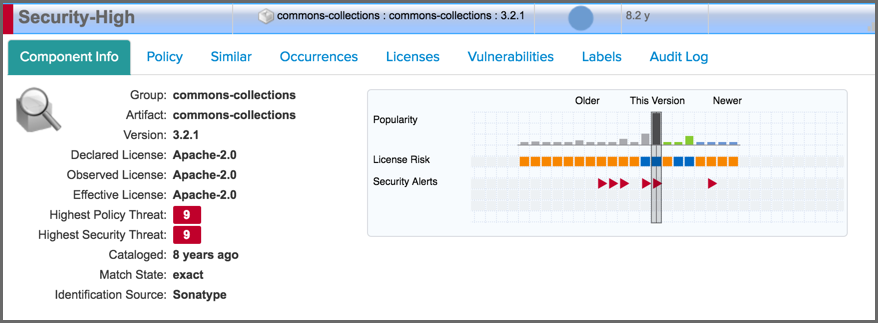

Figure 4.6. Component Information Panel
