9.1. Using the Dashboard

When you log into the IQ Server the Dashboard is displayed by default. If you are in any other location of the IQ Server, simply click the Dashboard icon figs/web/clm-server-dashboard-icon.png located in the header.

[Note]

The Dashboard is only available via the IQ Server, and only displays information for applications you are permitted to see. This requires that you, at a minimum, be in the Developer role for at least one application.

Data displayed here is based primarily on violations found during the evaluations of your applications. It is organized into three distinct areas:

  • Filters
  • Dashboard Header
  • Highest Risk Violations
figs/web/clm-server-dashboard-default-display-with-filters.png

Figure 9.2. Using the Dashboard


[Note]

When navigating the Dashboard, clicking on the breadcrumb link will return you to the most recent tab.

9.1.1. Filters

Filters allow you to adjust the data that is displayed in the Dashboard.

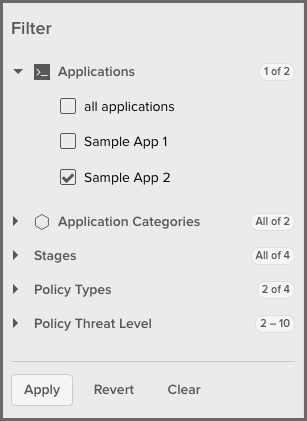

figs/web/clm-server-dashboard-filters.png

Figure 9.3. Filtering the dashboard


The Filter menu is located on the left side of the Dashboard. To adjust any of the various filters, click on the filter label to see the available options. A short summary of the current selection will be displayed next to each filter. Once you’ve adjusted the filters, click the Apply button to update the violations list.

[Tip]

After exiting the Sonatype Dashboard area and/or logging out, your most recently applied filters will persist for your account when you return. Clicking Revert will also revert all filters to their last applied state.

The available filters have been described below.

Applications
The application filter allows you to select which applications you want displayed in the violation list.
Application Categories
The category filter allows you to isolate violations for applications assigned to particular categories.
Stage

Violations can occur in different stages, and some will be higher priority than others. Using this filter, you can show violations for a specific stage. The available stages include:

  • Build
  • Stage Release
  • Release
  • Operate
[Note]

Access to stages is limited by your product license, and the filters will reflect this.

Policy Type

The policy type filter allows you to select which types of policies you want displayed in the violation list. Type is assigned automatically based on conditions included within the policy. The following rules are used to determine a policy’s type:

Security
if it has any security conditions, it is considered a Security policy.
License
if it has any license conditions, it is considered a License policy.
Quality
if it has any age or popularity conditions, it is considered a Quality policy.
Other
if none of its conditions are of types mentioned above, it is considered to be of type Other.
[Note]

A policy can only ever be of one type. If a policy has conditions that meet more than one of the rules above, the order above dictates the type of policy. For example, if a policy has security and license conditions, it is considered to be of type Security.

Policy Threat Levels

The Policy Threat Level filter is a slider that allows you to select the threat level or a range of threat levels for policy violations.

[Note]

By default, the Policy Threat Level filter has already been set to only display policy violations with a threat greater than or equal to 2. As a result, the Low threat violations are not displayed in the violation list.

9.1.2. Dashboard Header

The Dashboard header displays a summary of the data matching the current filter.

figs/web/clm-server-dashboard-visuals.png

Figure 9.4. Dashboard Header


Dashboard Header Summary

While much of the Dashboard focuses on policy violations, the information provided in the dashboard header summary covers all components.

The dashboard header summary shows counts for the number of applications, policies, and components the data in the Dashboard represents, identified by their corresponding icon and text label.

figs/web/clm-server-dashboard-visuals-viewing-counts.png

Figure 9.5. Counts


[Note]

In cases where data has been filtered, the counts may not represent all data.

Policy Violation Trends

To the right of the Dashboard header summary is a button titled Calculate Trends, clicking this will open a modal which will retrieve a view of trends for policy violations matching your current filter.

[Note]

This could take some time to calculate depending on the number and size of evaluations that match.

In contrast to the count data, the rest of the Dashboard, including the Policy Summary visualization, is geared towards identifying which components in your applications present risk so you can address them accordingly. This is because understanding how your business is handling risk over time is extremely important. As you are likely already asking, questions such as "How many new violations have been encountered, waived, or fixed," as well as "How many remain unresolved," are just the beginning.

Given this, the main goal of the Policy Summary visualization is to provide a quick, twelve-week look at how risk is entering your applications, and how you are handling that risk.

The Policy Summary area is divided into four categories, with each category having four metrics over a twelve-week period.

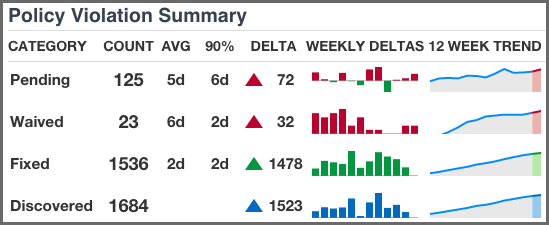

figs/web/clm-server-dashboard-visuals-summary.png

Figure 9.6. Policy Violation Trends


These categories and metrics have been described below:

Trend Categories
Pending

A policy violation that has been Discovered, but not yet Fixed or Waived, is Pending.

[Tip]

Reducing the number of pending violations is a critical task. Weekly deltas above the x-axis indicate there were more discovered violations than those fixed; green bars below the x-axis represent more violations were fixed than discovered.

Waived

This represents a count of policy violations that have been waived. This count is not included in Pending or Fixed, but is included in Discovered.

[Note]

For more information on waivers, see the Waivers section of the Application Composition Report chapter.

Fixed

A policy violation is Fixed when it no longer exists in any stage.

[Note]

When determining the Fixed state of a component, any filtered stages are not considered. That is, if you exclude a stage where a violation has occurred, the count for fixed may increase even though the violation is still present in the other stage.

Discovered
A policy violation is considered Discovered when it has been observed for the first time.
Policy Summary Metrics
Count
the total (all-time) count for the category.
AVG
the average age of violations in the category
90%
indicates 90 percent of violations have been in the category less than this time.
Delta
the count for the current week (week twelve), over the first week.
Weekly Deltas
the visual representation of each week’s unique delta.
12 Week Trend
the trend over twelve weeks.
[Tip]

It is not uncommon to see discovered violations trend upwards steeply, especially in the early phases of your implementation, and then plateau as you start developing a better component consumption process. Using your mouse to hover over values in the graphs will display the individual values for each week.
